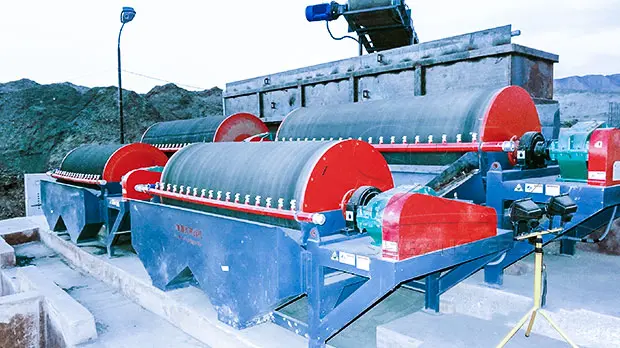

Using high performance Iron-Boron material can guarantee demagnetization not more than 3% in 10 years ,and magnetic systems is protected by wrapped stainless steel panels.

Using advanced external bearing structure, making bearing replacement more convenient.

Installation dimensions accord with DT75, DTII belt conveyor standard size, easy to use.

Half magnet system structure prevents ferrous material from entering inside of belt conveyor for safe operation.

When being the driving drum of belt conveyor, the strength is checked by advanced design software to ensure drum intensity.

The magnetic system has a fixed scheme in a reliable way, to avoid the magnetic group fall off and damage, and ensure the equipment run failure-free.

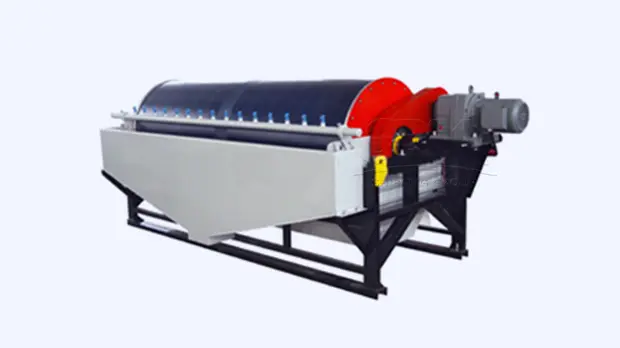

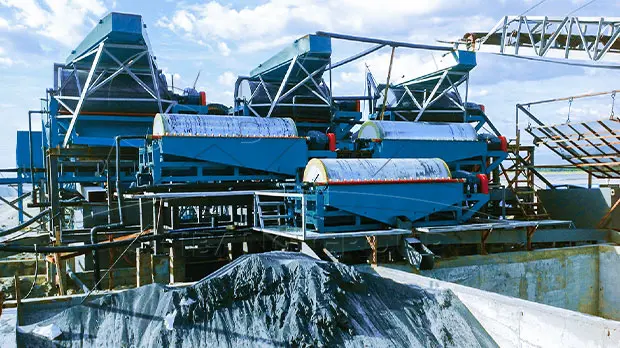

The downstream tub are designed specially, by which the 0-6mm graded materials can be directly for magnetic separation, and it will not have sediment accumulation in the tub while throw the tail, so it's capacity is very large.

It has row of silt institutions on both sides of the tub, which can facilitate cleaning sedimentation in the tub.

Easy for installation with small floor space and simple operation

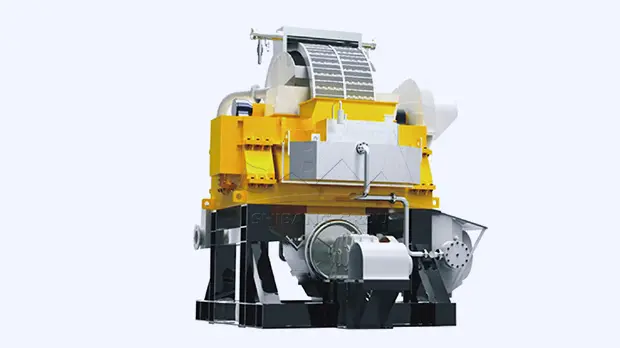

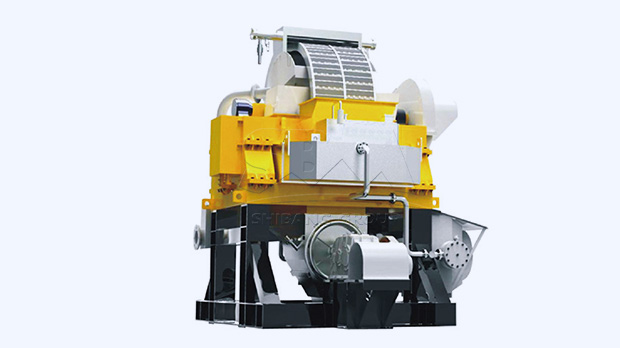

Has high magnetic field intensity. The background magnetic field strength can reach to 1T, and the induced magnetic field can reach to 2T on the surface of magnetic medium.

Initiative the excitation coil of energy saving technology, which can save more than 40% energy in the exciting part compared with the similar equipment.

The insulated wire of excitation coil increased from previous grade B to grade H.

Introducing the security transformer, so the coil terminal power supply to ground can’t form a loop, and make it more safe and reliable while doing spot operation.

The cooling water channel is made of stainless steel, which has strong corrosion-resisting. The designed flow has big section and short path, so the equipment is not easy to scale or block up.

The excitation coil service life is more than five years.

First using the 3D simulation of magnetic field finite element calculating method within the industry, by which eliminated the defect of the previous product background magnetic field.

Using low current control and the electronic components are all normal, which is convenient purchase for libraries and has low failure rate.

The swivel speed and pulsating speed are controlled with frequency conversion, in which made it more intuitive and convenient. So it’s more conducive to achieve good separation indexes.

It’s multi-level configuration in magnetic medium, which can be specially designed to get a better separation index and increase the service life of the magnetic medium.

The magnetic average recovery is 1.5% higher than others, and the non-magnetic minerals with sand amount on average 30% lower than others.
