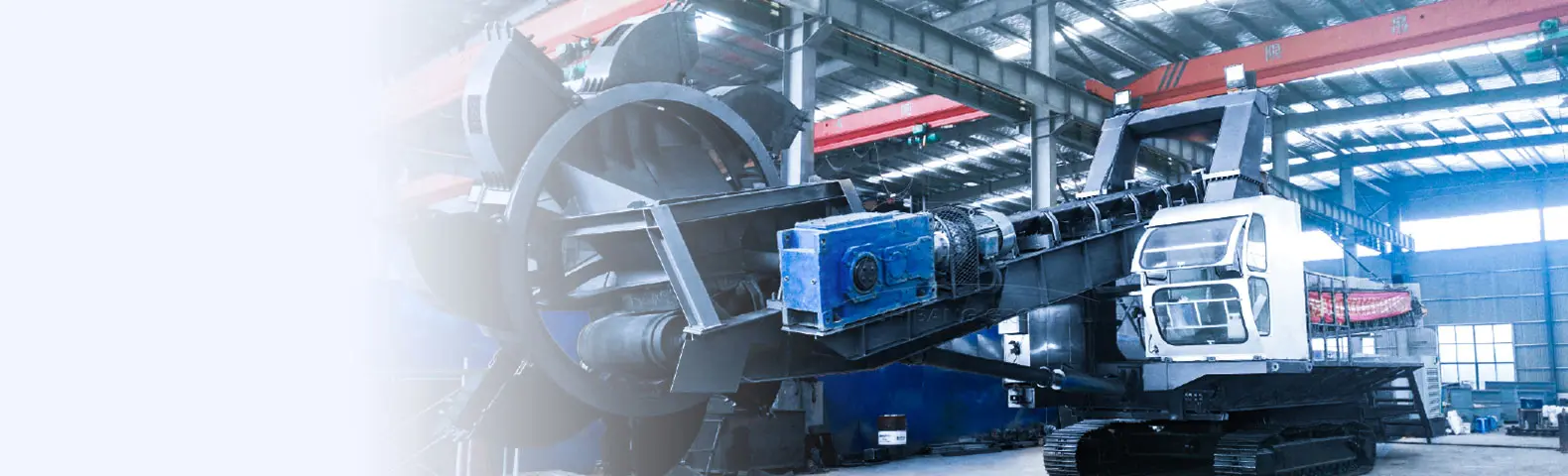

| Item | Specification |
| Capacity | 500-2800m³/h |
| Bucket volume | 0.09m³-0.71m³ |
| Bucket wheel diameter | 5.1m-8.2m |
| Bucket nos | 12—22 |
| Unit cutting force | 40-120kg/cm |
| Bucket wheel speed | 2～8r/min |
| Reclaiming boom rotation angle | 360° |
| Item | Specification |
| Conveyor belt width | 1-1.4m |
| Conveyor belt speed | 2-4.8m/s |
| Maximum crawler walking speed | 8.5m/min |
| Drive mode | Hydraulic drive |
| Power source | Diesel or electric drive |
| otal power | 166-1410kw |
| Lowest reclaiming height | 1m |
| Relcaiming height | 7-15m |

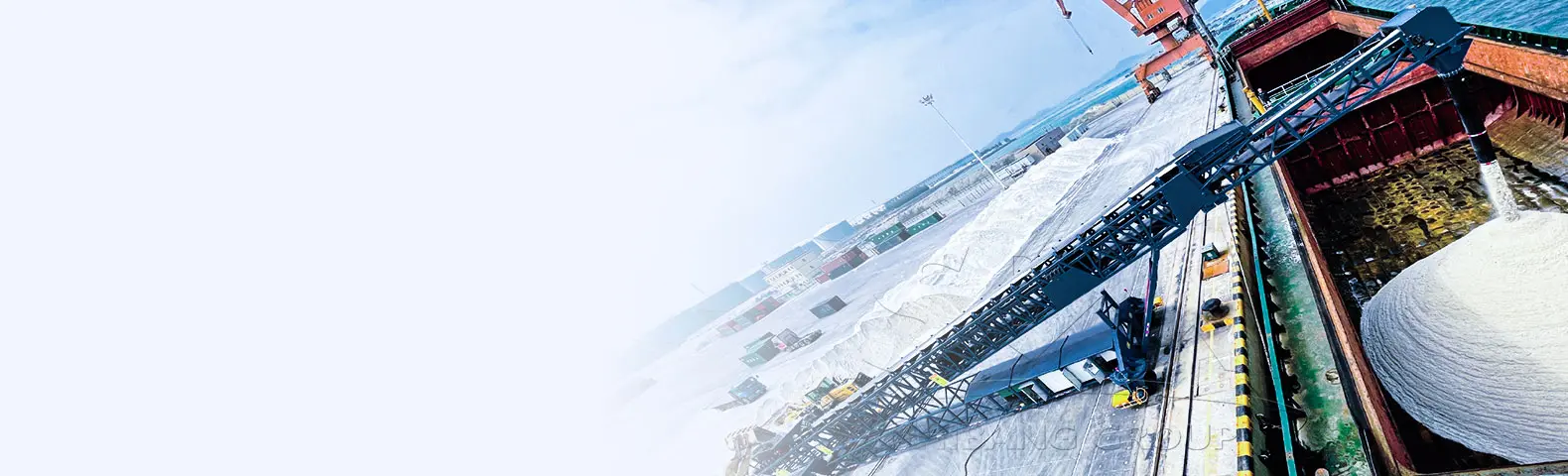

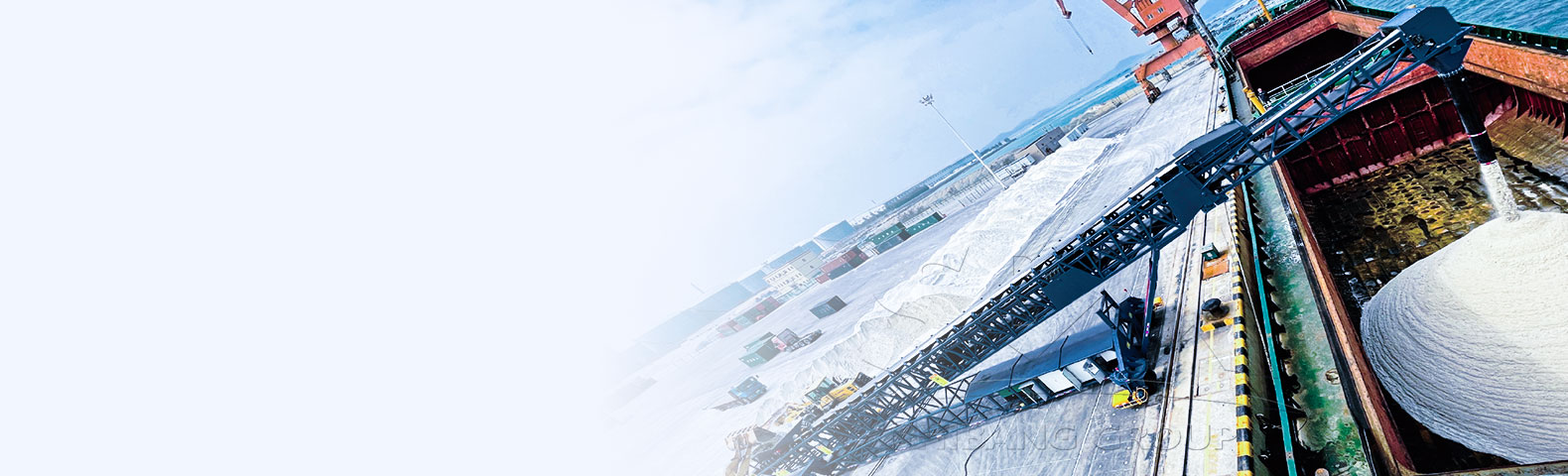

| Parameter | 33(23+10)m | 40(28+12)m | 46(31+15)m | 52(33+18)m | 60(40+20)m | |
| A Length(m) | 33 | 40 | 46 | 52 | 60 |  |
| B Discharge height (m) | 10.3 | 12 | 14.6 | 15.2 | 17.5 | |
| C Horizontal length(m) | 32.6 | 41 | 46.4 | 47.8 | 57.4 | |
| D Maximum angle(°) | 17 | 17 | 18 | 17 | 17 | |
| E Tail feeding height(m) | 3.6 | 3.6 | 3.6 | 4 | 4 |
| Parameter | A | B | C | D | E | |
| 33(23+10)m | 20.3 | 2.9 | 16 | 4.3 | 5.5 |  |
| 40(28+12)m | 28.8 | 2.8 | 21.1 | 7.7 | 5.7 | |
| 46(31+15)m | 29.3 | 6.4 | 19 | 10.2 | 6.9 | |
| 52(33+18)m | 38.1 | 6 | 26.1 | 12 | 8.1 | |
| 60(40+20)m | 47.8 | 6 | 30 | 17.8 | 10 |

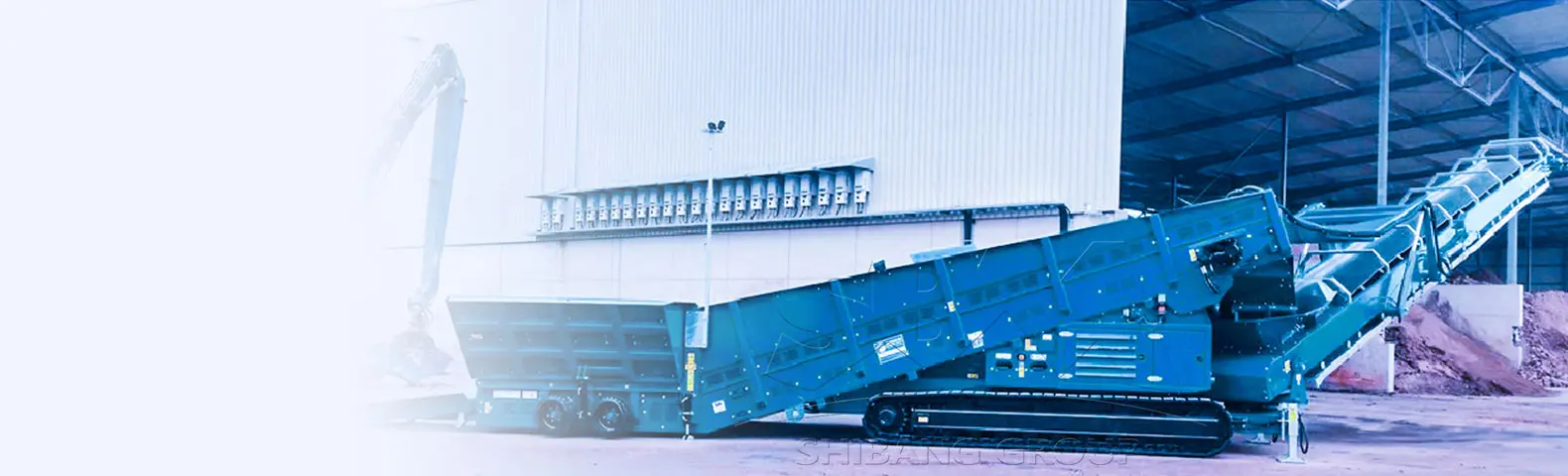

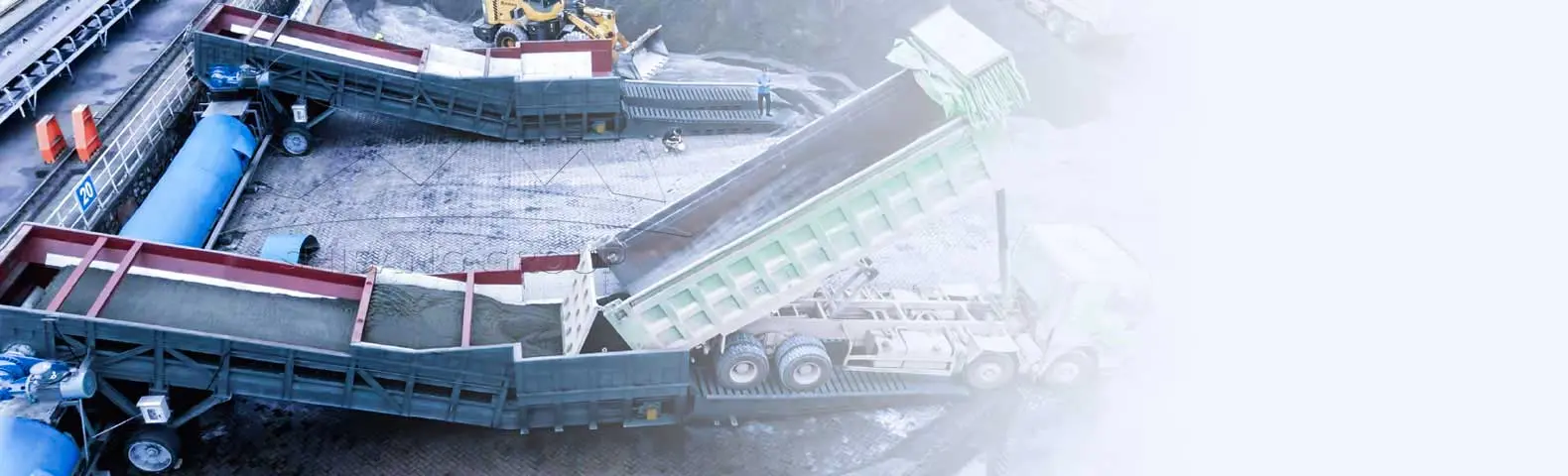

| Item | Specification |
| Hopper volume | 12-20m³ |
| Belt/apron board width | 1400-2200mm |
| VARIABLE SPEED | 0-15m/min |
| Drive mode | Chain or chain wheel |

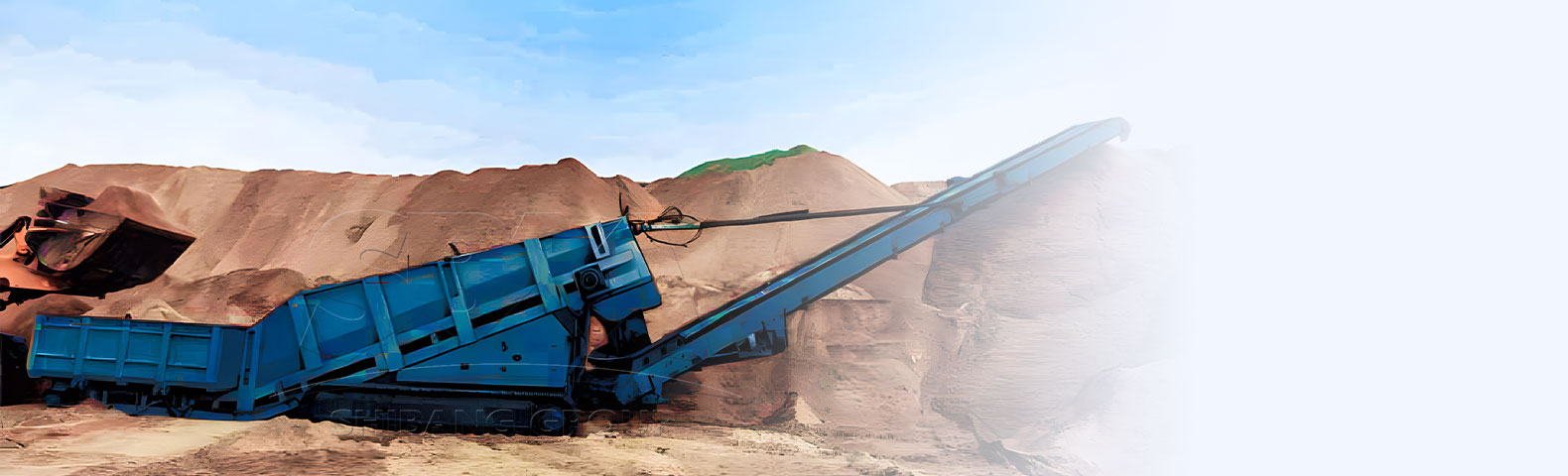

| Item | Specification |
| Transport capacity | 0-2000t/h |
| Max. feeding size | 100mm |
| Max. truck payload | 50t |
| Discharge height | 3-3.75m |

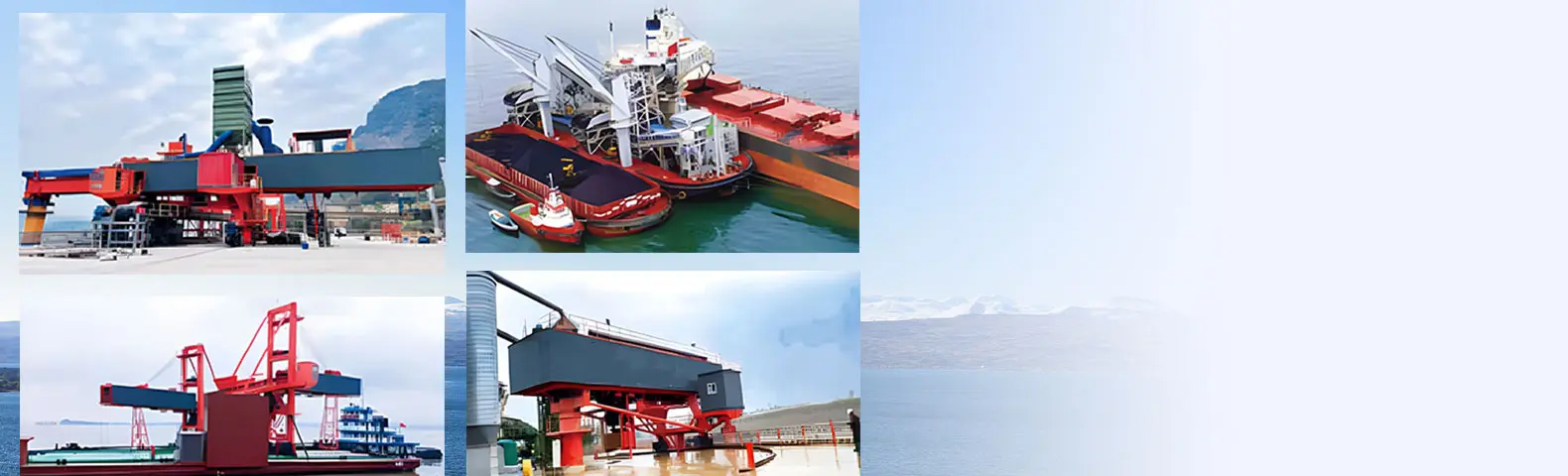

| No | Type | Applicable ship(WT) | Applicable Material | Loading Capacity |
| A | Circular orbit type | 1000-20000 | Bulk cement/clinker/grain/ aggregate/coal/ore | 300-5000t/h |
| B | Linear swing type | 3000-20000 | 1000-5000t/h | |
| C | Mobile type | 10000-100000 | 600-5000t/h | |
| D | Floating type | 1000-10000 | 300-5000t/h | |
| E | Fixed type | 1000-20000 | 300-3000t/h | |
| F | Wheel type | 1000-20000 | 300-1200t/h | |
| G | Overside handling system | 3000-50000 | 3000-5000t/h | |
| H | Bag type | 1000-2000 | Bagged cement/fertilizer/ grain | 1200bags/h |
| No | Type | Lifting weight | Material | Loading Capacity |
| A | Gantry crane | 10t-40t | Bulk cement/clinker/grain/ aggregate/coal/ore | 150-800t/h |
| B | Bridge type grab unloader | 8t-60t | 300-3500t/h | |
| C | Fixed type | 5t-40t | 150-800t/h | |
| D | Floating type | 5t-40t | 150-800t/h |
